SSR-10DA Datasheet – 10A, DC to AC Relay – Fotek

Part Number : SSR-10DA

Description : SSR Series, DC to AC Solid State Relay

Manufactures : http://www.fotek.com.hk/

Image :
ssr-10da-relay





Features

1. High Reliability by S.M.T & TGC. ( Surface Mounting Technology )
2. High Isolation over than 50mOhm / 500 VDC
3. High Dielectric over than 2.5KV
4. Low Enable Current less than 7.5mA / 12VDC CMOS IC or TTL Compatible.
5. Low EMI / EFI & Surge by Zero Cross Trigger Method.
6. High Surge Current Duration Over 10 Times of Rated Current / One Cycle
7. High Surge Voltage Duratin By Snubber Circuit

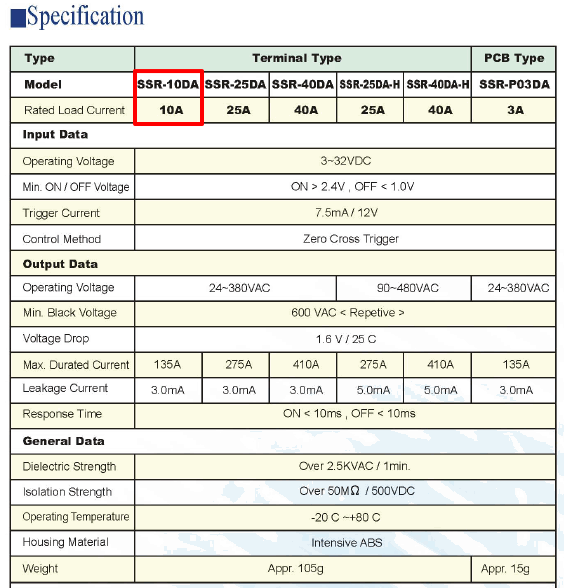

Specification

ssr-10da-datasheet



Diagram

SSR-10DA Diagram
Other data sheets within the file : SSR-25DA, SSR-25DA-H, SSR-40DA-H, SSR-P03DA

SSR-10DA Datasheet
