STR53041 Datasheet PDF – Hybrid Voltage Regulator – Sanken

Part Number : STR53041

Function : Hybrid IC Voltage Regulator

Package : SIP 5 Pin Type

Manufacturers : Sanken Electric co.,ltd.

Images :

STR53041 datasheet



Description :

1. Hybrid voltage regulator module with a triple diffused planar transistor incorporated.
2. For TV switch mode power supply application.
3. Fixed output voltage.

Absolute maximum ratings ( 25°C )

1. Maximum Peak Input Voltage : VIN = 550 V
2. Input Current : IIN = 6 A
3. Maximum Power Dissipation : PD =  27 W(Tc=100°C)

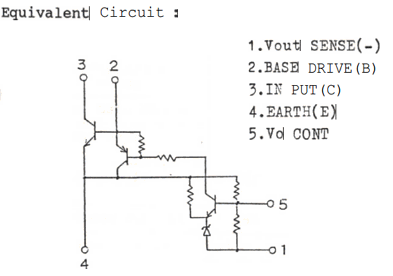

Pinout and Equivalent Circuit



Reference Site : http://electronica.yoreparo.com/datasheets/sin-solucionar/que-pin-es-la-entrada-y-la-salida-del-regulador-str53041-t835502.html

Other data sheets within the file :STR-53041

STR53041 Datasheet PDF Download


STR53041 pdf
