STW5NA90 Datasheet PDF – 900V, 5.3A, N-Ch, MOSFET – ST

Part Number : STW5NA90

Function : N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Package : TO-247, ISOWATT218 Type

Manufacturers : STMicroelectronics

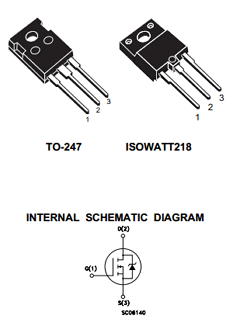

Pinouts :

STW5NA90 datasheet

Description :

1. TYPICAL RDS(on) = 2.1 Ω
2. ± 30 V GATE-TO-SOURCE VOLTAGE RATING
3. 100% AVALANCHE TESTED
4. REPETITIVE AVALANCHE DATA AT 100oC
5. GATE CHARGE MINIMISED
6. REDUCED THRESHOLD VOLTAGE SPREAD

Absolute maximum ratings

1. Drain-source Voltage (VGS = 0) : VDS = 900 V
2. Drain- gate Voltage (RGS = 20 kW) : VDGR = 900 V
3. Gate-source Voltage : VGS = ± 30 V
4. Drain Current (continuous) at Tc = 25°C : ID = 5.3  A
5. Drain Current (continuous) at Tc = 100°C : ID = 3.4 A
6. Drain Current (pulsed) : IDM = 21.2 A
7. Total Dissipation at Tc = 25 °C : Ptot =  150 W
8. Storage Temperature : Tstg = – 65 to 150 °C
9. Max. Operating Junction Temperature : Tj = 150 °C

Applications

1. HIGH CURRENT, HIGH SPEED SWITCHING
2. SWITCH MODE POWER SUPPLY (SMPS)
3. DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE

Other data sheets within the file : STH5NA90FI, W5NA90, W5NA90-1
