CX-0905C PDF Datasheet – 5V DC, Magnetic Buzzer

Part Number: CX-0905C

Function: Magnetic buzzer (  Magnetic Sound Transducer )

Pakcage : PIN Type ( Au Plating )

Manufacturer: CUI

Images:

1 page
CX-0905C image



Description:

CX-0905C is magnetic buzzer. Date: 9/22/2006 Unit: mm Page No: 1 of 4 Specifications Rated voltage Operating voltage Mean curren Sound output Resonant frequency Operating temperature Storage temperature Dimensions Weight Material Terminal RoHS 5.0 V dc 4.0 ~ 7.0 V dc 35 mA max. 80 db min. (87 typical) 2730 ±300 Hz -30 ~ +70° C -40 ~ +85° C ø9.6 x H5.0 mm 0.6 g PBT (Black) PIN type (Au Plating) yes at 10 cm / 5 V dc Appearance Drawing Tolerance: ±0.5 Phone: 800.275.4899 Fax: 503.612.2381 www.cui.com 20050 SW 112th Ave. Tualatin, OR 97062 Part No: CX-0905C Description: magnetic buzzer Date: 9/22/2006 Unit: mm Page No: 2 of 4 Voltage: Sound Pressure Level / Voltage: Current Consumption Measurement Method Phone: 800.275.4899 Fax: 503.612.2381 www.cui.com 20050 SW 112th Ave. Tualatin, OR 97062 Part No: CX-0905C Description: magnetic buzzer Date: 9/22/2006 Unit: mm Page No: 3 of 4 Mechanical Characteristics Item Solderability Soldering Heat Resistance Evaluation Standard Test Condition 95% of the surface of the lead Lead terminals are immersed in solder bath pads must be wet with solder. of 270 ±5°C for 3 ±1 seconds. Lead terminals are immersed up to 1.5mm from the buzzer’s body in a solder bath of 260 ±5°C No interference in operation. for 3 ±1 seconds. No damage or cutting off. For 10 seconds, the force of 9.8N (1.0kg) is applied to each terminal in axial direction. After the test, the part shall meet The buzzer shall be measured after applying specifications without any a vibration amplitude of 1.5 mm with 10 to damage to the appearance or 55 Hz band of vibration frequency to each of performance. The SPL should be the 3 perpendicular directions for 2 hours. within ±10 dBA of the initial SPL The part will be dropped from a height of measurement. 75 cm onto a 40 mm thick wooden board 3 times in 3 axes (X, Y, Z) for a total of 9 drops. Terminal Mechanical Strength Vibration Drop Test Environment Test Item High temp. test Low temp. test Thermal shock Test Condition The part will be subjected to +85°C for 96 hours. The part will be subjected to -40°C for 96 hours The part will be subjected to 10 cycles. One cycle will consist of: Evaluation Standard Temp./Humidity cycle The part shall be subjected to 10 cycles. One cycle will last for 24 hours and consist of: After the test, the part shall meet specifications without any damage to the appearance or performance. After 4 hours at 25°C, the SPL should be within ±10 dBA of the initial SPL measurement. Phone: 800.275.4899 Fax: 503.612.2381 www.cui.com 20050 SW 112th Ave. Tualatin, OR 97062 Part No: CX-0905C Description: magnetic buzzer Date: 9/22/2006 Unit: mm Page No: 4 of 4 Reliability Test Item Operating (Life Test) Test Condition 1. Continuous life test: The part will be subjected to 72 at +55°C with 5.0 V dc applied. 2. Intermittent life test: A duty […]

2 page
pinout

CX-0905C Datasheet

14R06CT Buzzer Datasheet – 1.5V, Audio Magnetic Buzzer

Part Number: 14R06CT, CEM-14R06CT

Function: Single Tone Audio Magnetic Buzzer, Frequency : 2.8kHz

Package: Through Hole  PC 2 Pin

Manufacturer: CUI INC ( www.cui.com )


14R06CT Buzzer

Specifications

1. Rated voltage : 1.5 Vo-p
2. Operating voltage : 1.0 – 1.7 Vo-p
3. Mean current : 40 mA max. ( Applying rated voltage, 2800 Hz square wave, ½ duty )
4. Coil resistance : 16 ±2.4 Ω
5. Sound output : Min. 85 (Typical 91) dBA
Distance at 10cm (A-weight free air). Applying rated voltage of 2800 Hz, square wave, ½ duty.
6. Rated frequency : 2,800 Hz
7. Operating temperature : -30 ~ +70° C
8. Storage temperature : -40 ~ +85° C
9. Dimensions : ø12.0 x H10.0 mm See attached drawing
10. Weight : 1.6 g
11. Material : PBT (Black)
12. Terminal : Pin type (Au Plating) See attached drawing
13. RoHS : yes

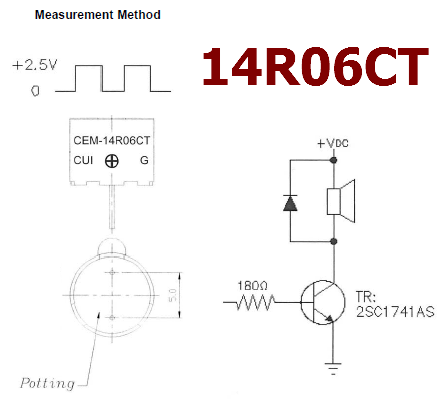

Pinout
14R06CT datasheet pinout

Mechanical Characteristics

1. Solderability

Lead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of 270 ±5°C for 3 ±1 seconds.

90% min. lead terminals should be wet with solder. (Except the edge of the terminal.)

2. Vibration

The buzzer will be measured after applying a vibration amplitude of 1.5mm with 10 to 55 Hz band of vibration frequency to each of the 3 perpendicular directions for 2 hours.

14R06CT Datasheet

14R06CT pdf



Other data sheets are available within the file:
