AGM1264B Datasheet – 128 x 64 dots, LCD Module

Part Number : AGM1264B

Function : 128 x 64 dots, LCD Module

Manufacturers : AZ Displays

Pinouts :

AGM1264B datasheet

Description :

0.3-7.0V; 1.8mA; number of dots 128 x 64dots; dot size0.48 x 0.48mm; dot pitch0.52 x 0.52mm; AZ display

Other data sheets within the file :

AGM1264B-FEBBD-T, AGM1264B-FEBBH-T, AGM1264B-FEBBS-T, AGM1264B-FEBBW-T

AGM1264B Datasheet PDF Download

AGM1264B pdf

DB3 Datasheet PDF – Diac Trigger Diode – STMicroelectronics

Part Number : DB3

Description : DIAC

Manufactures : STMicroelectronics

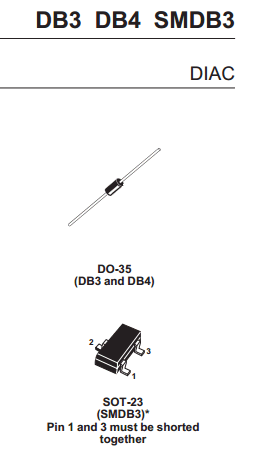

DB3 image

Features
1. VBO: 32V and 40V
2. LOW BREAKOVER CURRENT

Description

Functioning as a trigger diode with a fixed voltage reference, the DB3/DB4 series can be used in conjunction with triacs for simplified gate control circuits or as a starting element in fluorenscent lamp ballasts. A new surface mount version is now available in SOT-23 package, providing reduced space and compatibility with automatic pick and place equipment.

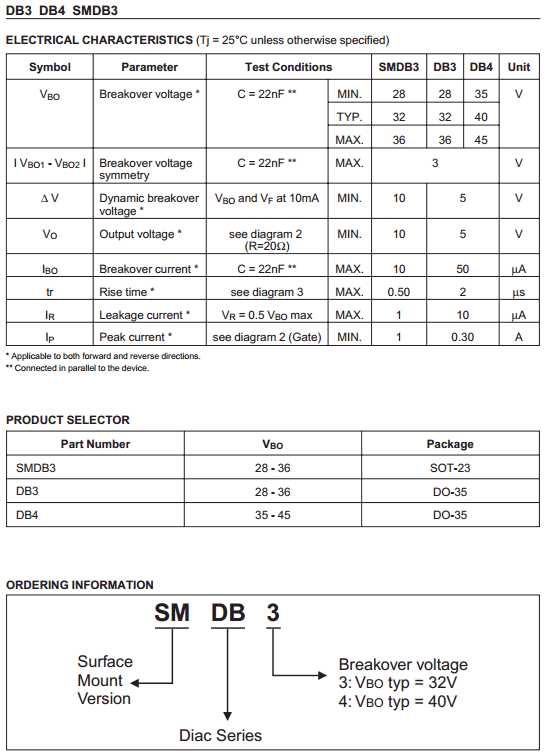

DB3 datasheet

DB3 Datasheet PDF
