ERJ-12SF Datasheet – 2010 Size, Thick Film Chip Resistor – Panasonic

Part Number : ERJ-12SF

Function : 1/2W, Precision Thick Film Chip Resistor

Package :  2010 Size SMD Type

Manufacturers : Panasonic

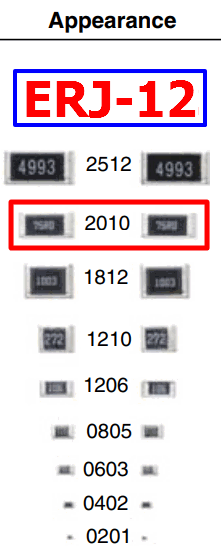

ERJ-12SF Chip Resistor

Features

1. Small size and lightweight
2. High reliability using metal glaze thick film resistive element and three layers of electrodes
3. Compatible with automatic placement of bulk taping and bulk case packaging
4. Reflow and fl ow solderability
4. Meets ISO-9001 & QS-9000 standards



Ordering Information

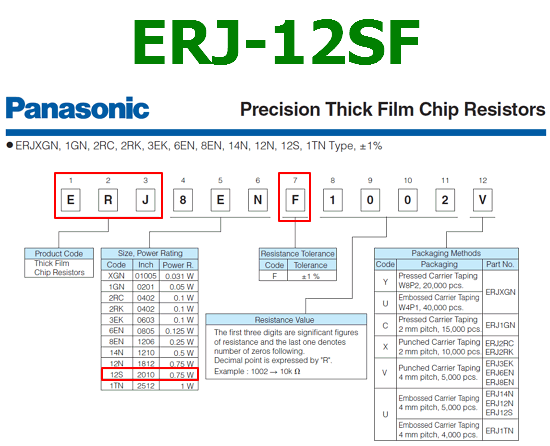

ERJ-12SF Ordering information



Other data sheets within the file : ERJ-12SF3320U, ERJ-12SF20R0U, ERJ-12SF30R9U

ERJ-12SF Datasheet PDF Download



74HC157 Datasheet PDF – Quad Multiplexer – Fairchild

Part Number : 74HC157

Function : Quad 2-Input Multiplexer

Package : 16 Pin SOIC, SOP, TSSOP, DIP Type

Manufacturers : ON Semiconductor, Fairchild Semiconductor

Pinouts :

74HC157 datasheet

Description :

The 74HC157 high speed Quad 2-to-1 Line data selector/Multiplexers utilizes advanced silicon-gate CMOS tech nology. It possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 10 LS-TTL loads.

This device consists of four 2-input digital multiplexers with common select and STROBE inputs. When the STROBE input is at logical “0” the four outputs assume the values as selected from the inputs. When the STROBE input is at a logical “1” the outputs assume logical “0”.



74HC157 Truth Table

Features

1. Typical propagation delay : 14 ns data to any output
2. Wide power supply range : 2-6V
3. Low power supply quiescent curretn : 80 uA maximum ( 74HC Series )
4. Fan-out of 10 LS-TTL loads
5. Low input current : 1 uA maximum

Other data sheets within the file : MM74HC157, MM74HC157M, MM74HC157N

74HC157 Datasheet PDF Download


74HC157 pdf
