LTC6078 Datasheet – Low Noise Operational Amplifier

Part Number : LTC6078

Description : Ddual/quad, Low offset, Low noise operational amplifier

Package : 8-lead MSOP and 10-lead DFN Type

Manufactures : Linear Technology, Analog devices

Image :

LTC6078 datasheet pdf

Description

The LTC6078 / LTC6079 are dual/quad, low offset, low noise operational amplifi ers with low power consumption and rail-to-rail input/output swing. Input offset voltage is trimmed to less than 25µV and the CMOS inputs draw less than 50pA of bias current. The low offset drift, excellent CMRR, and high voltage gain make it a good choice for precision signal conditioning

Features

1. Micropower: 54µA per Amp
2. 95dB CMRR (Min)
3. 100dB PSRR (Min)
4. Rail-to-Rail Inputs and Outputs
5. 2.7V to 5.5V Operation Voltage

Pinout

LTC6078 pinout amplifier



Applications

1. Photodiode Amplifi er
2. High Impedance Sensor Amplifi er
3. Microvolt Accuracy Threshold Detection
4. Instrumentation Amplifi ers
5. Battery Powered Applications

Other data sheets within the file :

LTC6078CDD, LTC6078IDD, LTC6078AMS8, LTC6078AMS8, LTC6078MS8, LTC6078MS8

LTC6078 Datasheet



AD811AR-16 Datasheet PDF – Video Operational Amplifier

Part Number : AD811AR-16

Function : High Performance Video Operational Amplifier

Package : SOIC 16 Pin Type

Manufacturers : Analog Devices

Images

AD811AR-16 datasheet pdf

Description :

A wideband current feedback operational amplifier, the AD811 is optimized for broadcast-quality video systems. The −3 dB bandwidth of 120 MHz at a gain of +2 and the differential gain and phase of 0.01% and 0.01° (RL = 150 Ω) make the AD811 an excellent choice for all video systems.

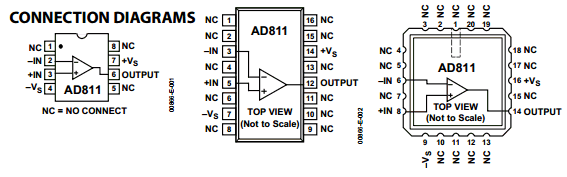

Pinouts :

AD811AR-16 pinout



Features

1. High speed
(1) 140 MHz bandwidth (3 dB, G = +1)
(2) 120 MHz bandwidth (3 dB, G = +2)
(3) 35 MHz bandwidth (0.1 dB, G = +2)
(4) 2500 V/μs slew rate
(5) 25 ns settling time to 0.1% (for a 2 V step)
(6) 65 ns settling time to 0.01% (for a 10 V step)
2. Excellent video performance (RL=150 Ω)
(1) 0.01% differential gain, 0.01° differential phase

Applications

1. Video crosspoint switchers, multimedia broadcast systems
2. HDTV compatible systems
3. Video line drivers, distribution amplifiers
4. ADC/DAC buffers
5. DC restoration circuits

Other data sheets within the file : AD811ACHIPS, AD811AN, AD811ANZ, AD811AR

AD811AR-16 Datasheet PDF Download


AD811AR-16 pdf
