TAS5558 Datasheet PDF – 8-Ch, HD Compatible Audio Processor

Part Number: TAS5558

Function: 8-Channel HD Compatible Audio Processor with ASRC and PWM Output

Package: HTSSOP 56 Pin Type

Manufacturer: Texas Instruments


TAS5558 datasheet



The TAS5558 can drive eight channels of H-bridge power stages. Texas Instruments Power Stages are designed to work seamlessly with the TAS5558. The device supports either the single-ended or bridge tied-load configuration. The IC also provides a high-performance, differential output to drive an external, differential-input, analog headphone amplifier.

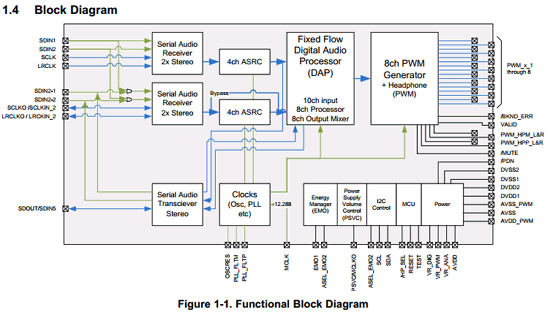

Block Diagram :



1. 8ch Asynchronous Sample Rate Converter

2. 8 Channel Audio Processing for 32-192 kHz (ARSC to 96kHz)

3. 4 Channel Native Audio Processing at 192kHZ

4. Energy Manager for Overall System Power Control

TAS5558 Datasheet PDF Download

TAS5558 pdf

Other data sheets are available within the file: TAS5558DCA, TAS5558DCAR
