TAS5733 PDF – Digital Input Audio Power Amplifier, 48 Pin

Part Number : TAS5733, TAS5733L

Function : Audio Power Amplifier with EQ and 3-Band AGL (Rev. A)

Package : HTSSOP 48 Pin Type

Manufactures : Texas Instruments ( https://www.ti.com/ )

Images :

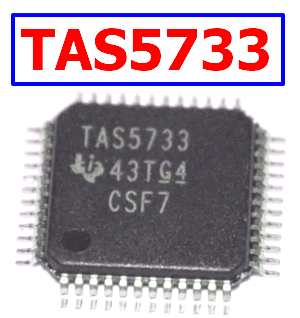

TAS5733 datasheet

Description :

The TAS5733 device is an efficient, digital-input audio amplifier for driving stereo speakers configured as a bridge tied load (BTL). In parallel bridge tied load (PBTL) in can produce higher power by driving the parallel outputs into a single lower impedance load. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers.

[…]

Pinouts :

TAS5733 pinouts

Features :

1. 104-dB SNR, A-Weighted, Referenced to Full Scale (0 dB)

2. I²C Serial Control Interface w/ two Addresses

3. Thermal, Short-Circuit, and Undervoltage Protection

4. Up to 90% Efficient

5. AD, BD, and Ternary Modulation

6. PWM Level Meter



TAS5733 Datasheet

TAS5733 pdf
