TB2931HQ Datasheet – 4-Channel Audio Amplifier IC – Toshiba

Part Number : TB2931HQ

Function : MOS amplifier for 4 BTL channel

Package : HZIP25-P-1.00F  Type

Manufactures : Toshiba

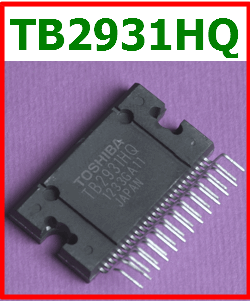

TB2931HQ audio ic

Description

Maximum output 49 W BTL × 4CH low-frequency power amplification for TB2931HQ is a four-channel BTL amplifier built-in power IC that has been developed for car audio.

The output stage has adopted the DMOS, upper P-ch, is composed of a pure complementary of the lower N-ch, and achieves a maximum output power POUT = 49 W.



Block Diagram

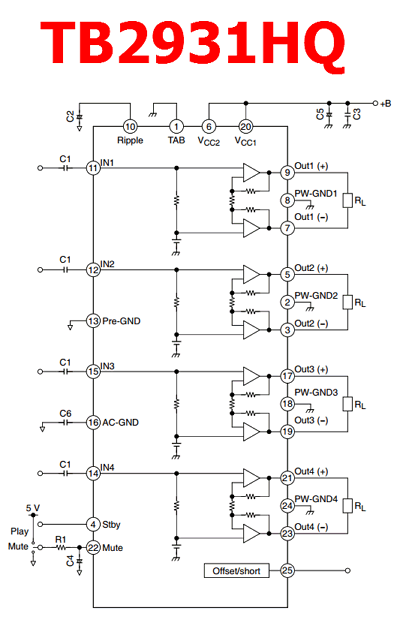

TB2931HQ block diagram

TB2931HQ Datasheet
