TCRT5000 Datasheet – Reflective Optical Sensor – Vishay

4Part Number : TCRT5000, TCRT5000L

Function : Reflective Optical Sensor with Transistor Output

Dimensions : (L x W x H in mm): 10.2 x 5.8 x 7

Manufactures : Vishay Telefunken

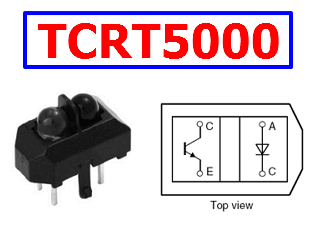

tcrt5000-reflective-optical-sensor

Description

The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.



Test Circuit

tcrt5000-test-circuit



Features

1. Package type: leaded
2. Detector type: phototransistor
3. Dimensions (L x W x H in mm): 10.2 x 5.8 x 7
4. Peak operating distance: 2.5 mm
5. Operating range within > 20 % relative collector current: 0.2 mm to 15 mm
6. Typical output current under test: IC = 1 mA
7. Daylight blocking filter
8. Emitter wavelength: 950 nm
