TDA8763M Datasheet PDF – 10-bit, High-speed ADC

Part Number : TDA8763M

Function : 10-bit high-speed low-power ADC with internal reference regulator

Package : SSOP 28 Pin Type

Manufacturers : Philips Electronics

Pinouts :

TDA8763M datasheet



Description :

The TDA8763AM and the TDA8763M are 10-bit Analog-to-Digital Converters. They can convert a typical analog input signal into 10 bits binary coded digital words at a maximum sampling rate of 50 Mega sample per second with a typical power dissipation of 175mW for the TDA8763AM and 235mW for the TDA8763M.

The IC code either binary or two’s complement digital words with 3V to 5V25 CMOS digital outputs. The deivce contains an internal reference voltage regulator ensuring the TOP and the BOTTOM reference voltages of the quantization ladder.

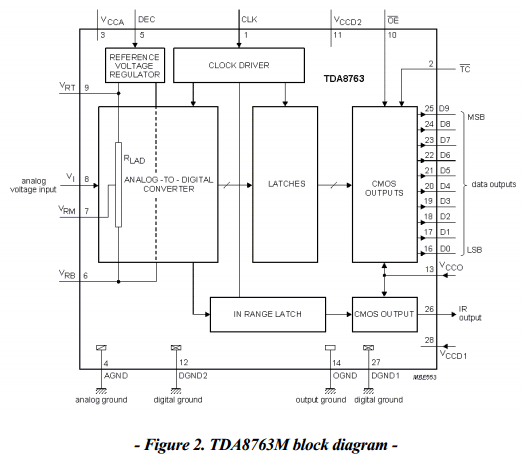

Block Diagram

Features :

1. 10-bit resolution

2. Sampling rate up to 50 MHz

3. DC sampling allowed

4. One clock cycle conversion only

5. Low-level AC clock input signal allowed

6. Internal reference voltage regulator

Applications :

1. Video data digitizing

2. Radar pulse analysis

3. Transient signal analysis

4. High energy physics research



TDA8763M Datasheet PDF Download


TDA8763M pdf

Other data sheets within the file :

TDA8763, TDA8763/3/C1, TDA8763M/3/C3, TDA8763M/3/C4, TDA8763/4/C3
