TEA1716T Datasheet PDF – Resonant Power Supply Control IC

Part Number : TEA1716T

Function : Resonant Power Supply Control IC with PFC

Package : SO24 Type

Manufacturers : NXP Semiconductors.

Pinouts :

TEA1716T datasheet



Description :

The TEA1716T integrates a Power Factor Corrector (PFC) controller and a controller for a Half-Bridge resonant Converter (HBC) in a multi-chip IC. It provides the drive function for the discrete MOSFET in an up-converter and for the two discrete power MOSFETs in a resonant half-bridge configuration.

Features :

1. Integrated PFC and HBC controllers

2. Universal mains supply operation from 70 V to 276 V (AC)

3. High level of integration resulting in a low external component count and a cost
effective design

4. Integrated Burst mode sensing

5. Compliant with Energy Using Product Directive (EuP) lot 6

6. Enable input to enable only the PFC or both the PFC and HBC controllers

7. On-chip high-voltage start-up source

8. Stand-alone operation or IC supplied from external DC source

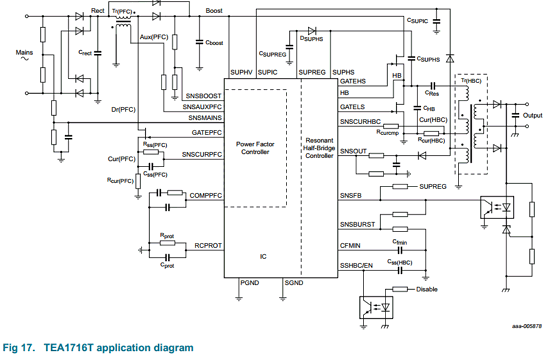

Application Circuits :



Applications :

1. LCD television

2. Plasma television

3. Notebook adapter

4. Desktop and all-in-one PCs

TEA1716T Datasheet PDF Download


TEA1716T pdf

Other data sheets within the file : TEA1716, TEA1716T/2
