TIL112 Datasheet – Optically Coupled Isolator

Part Number: TIL112

Function: Optically Coupled Isolator

Package: DIP 6 Pin Type

Manufacturer: Texas Instruments

Image:

TIL112 datasheet



Description

The TIL112, TIL115 and TIL118 series of optical isolstors are electrical and mechanical replacements for the Texas Instrument series. Optical intercoupling provides a high degree of ac and dc isolation. Connection to the base is also provided for design flexibility.

components



components

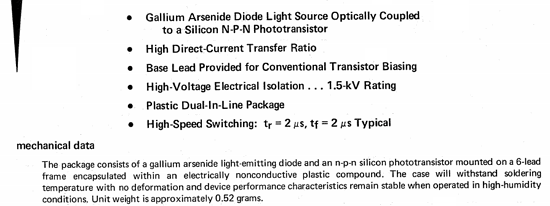

Features

1. High Current Transfer Ratio

2. High-Speed switching

3. Low Coupling Capacitance

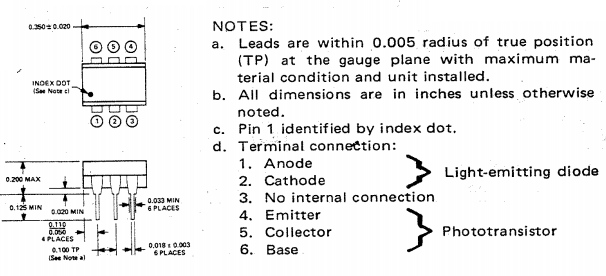

Pinout

1 Anode (+)
2 Cathode (-)
3 NC
4 Emitter
5 Collector
6 Base

Other data sheets are available within the file: TIL115, TIL118



TIL112 Datasheet PDF Download


TIL112 pdf
