TLC7528E Datasheet – 8-bit, Digital-to-analog Converter

Part Number: TLC7528E

Function: DUAL 8-BIT MULTIPLYING DIGITAL-TO-ANALOG CONVERTER

Package: DIP, SOIC, PLCC 20 Pin Type

Manufacturer: Texas Instruments

Pinouts:

TLC7528E datasheet



Description

The TLC7528C, TLC7528E, and TLC7528I are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC match ing. Data are transferred to either of the two DAC data latches through a common, 8-bit, input port. These devices operate from a 5V to 15V power supply and dissipates less than 15 mW (typical).

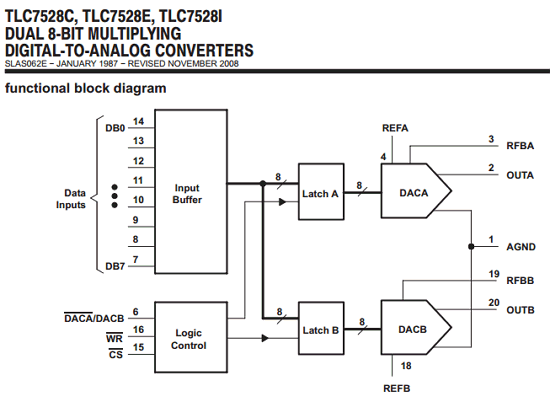

Block Diagram :

components

Features

1. Easily Interfaced to Microprocessors

2. On-Chip Data Latches

3. Monotonic Over the Entire A/D Conversion Range

4. Interchangeable With Analog Devices AD7528 and PMI PM-7528



TLC7528E Datasheet PDF Download


TLC7528E pdf

Other data sheets are available within the file:

TLC7528, TLC7528EN, TLC7528I, TLC7528IDW, TLC7528IDWG4
