TPS715A01 Datasheet PDF – 80mA, 24V, Voltage Regulator

Part Number : TPS715A01

Function : HIGH INPUT VOLTAGE, 80mA LDO LINEAR REGULATOR

Package : VSON 8 Pin, WSON 6 Pin Type

Manufacturers : Texas Instruments

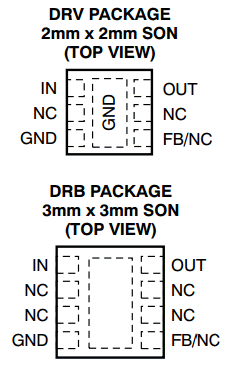

Pinouts :

TPS715A01 datasheet



Description :

The TPS715Axx, TPS715A01 low-dropout (LDO) voltage regulators offer the benefits of high input voltage, low-dropout voltage, low-power operation, and miniaturized packaging.

The devices, which operate over an input range of 2.5V to 24V, are stable with any capacitor (≥ 0.47μF). The high maximum input voltage combined with excellent power dissipation capability makes this part particularly well-suited to industrial and automotive applications.

Features :

1. 24-V Maximum Input Voltage

2. Low 3.2-µA Quiescent Current at 80 mA

3. Stable With Any Capacitor (≥ 0.47 µF)

4. 80-mA Specified Current

5. Available in Fixed and Adjustable (1.2 V to 15 V) Versions



TPS715A01 Datasheet PDF Download


TPS715A01 pdf

Other data sheets within the file :

TPS715A01DRBR, TPS715A01DRBRG4, TPS715A01DRBT, TPS715A01DRBT-NM
