TS3L500AERHUR Datasheet – 8-channel Gigachannel LAN Switch

Part Number: TS3L500AERHUR

Function: 16-Bit to 8-Bit SPDT Gigabit LAN Switch With LED Switch and Enhanced ESD Protect

Package: TQFN 56 Pin Type

Manufacturer: Texas Instruments

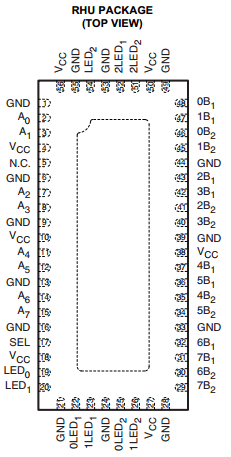

Pinouts:

TS3L500AERHUR datasheet

Description

The TS3L500AE, TS3L500AERHUR is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals and includes high ESD protection.

The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T.

This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.

Features

1. Wide Bandwidth (BW = 950 MHz Typ)

2. Low Crosstalk (XTALK = –37 dB Typ)

3. Low Bit-to-Bit Skew (tsk(o) = 100 ps Max)

4. Low Input/Output Capacitance (CON = 8 pF Typ)

5. Rail-to-Rail Switching on Data I/O Ports (0 to 3.6 V)

6. VCC Operating Range From 3 V to 3.6 V



TS3L500AERHUR Datasheet PDF Download


TS3L500AERHUR pdf

Other data sheets are available within the file:

TS3L500, TS3L500AE, TS3L500AER, TS3L500AERHURG4
