This is one of the transistor types.
Part Number: TT2076
Function: 800V, 8A, NPN Transistor
Package: TO-3PML type
Manufacturer: SANYO (Panasonic)

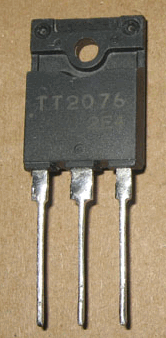

Image:
Description:
The TT2076 is 800V, 8A, NPN Triple Diffusion Planar Type Silicon Transistor.
Features:
1. High speed.
2. High-voltage (VCBO = 1500V).
3. High reliability (HVP process adopted).
4. Adoption of MBIT process.

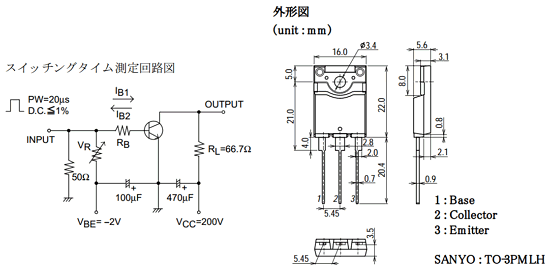

Pinouts:
Absolute Maximum Ratings ( Ta=25°C )
1. Collector-Base Voltage : VCBO = 1500 V
2. Collector-Emitter Voltage : VCEO = 800 V
3. Emitter-Base Voltage : VEBO = 5 V
4. Collector Current-Continuous : IC = 8 A
5. Collector Current-Pulse : ICP = 16 A
6. Collector Power Dissipation : PC = 3.0 W
Applications:
1. CRT display for horizontal deflection output
Other data sheets are available within the file: TT-2076
TT2076 Datasheet PDF Download
