UNR5211 Datasheet PDF – 50V, 100mA, NPN Transistor

Part Number : UNR5211

Marking Code : 8A

Function : Silicon NPN epitaxial planar type Transistor / Transistor with built-in Resistor

Manufacturers : Panasonic Corporation

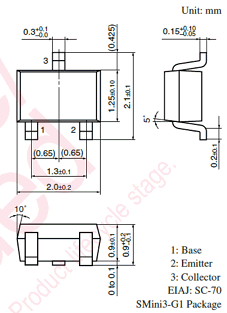

Pinouts :

UNR5211 datasheet



Description :

This is 50V, 100mA, NPN Transistor ( SMD Type )

Applications :

1. For digital circuits



Features :

1. Costs can be reduced through downsizing of the equipment and reduction of the number of parts

2. S-Mini type package, allowing automatic insertion through the tape packing and magazine packing



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 50 V

2. Collector to Emitter Voltage : Vceo = 50 V

3. Collector Current : Ic = 100 mA

4. Total Power Dissipation : Pt = 150 mW

5. Junction Temperature : Tj = 150°C

6. Storage Temperature : Tsg = -55 ~ +150°C



UNR5211 Datasheet PDF Download


UNR5211 pdf

Other data sheets within the file : UNR5210, UNR5212, UNR5213, UNR5214
