UPG103B Datasheet PDF – Wide-Band Amplifier – NEC

Part Number: UPG103B

Function: Low Noise Wide-Band Amplifier

Package: 8 Pin Ceramic, TO-72 metal Can Type

Manufacturer: NEC ( Renesas Technology )

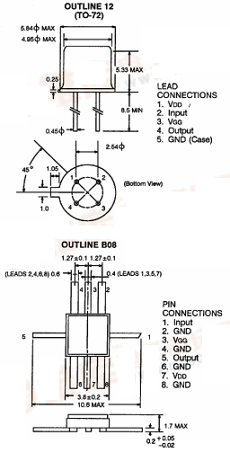

Image and Pinouts:

UPG103B datasheet



Description:

The uPG103B is GaAs integrated circuit designed as wide band (50 MHz to 3GHz) amplifiers. This device is most suitable for the microwave communication system and the measurement equipment.

Features:

1. Ultra wide band : f = 50 MHz to 3 GHz

2. Input/output impedance matched to 50 W

3. Hermetic sealed ceramic package assures high reliability

Absolute maximum ratings

1. Drain Voltage : VDD = +8 V

2. Gate Voltage : VGG =  -8 V

3. Input Voltage : Vin = -3 to +0.6 V

4. Input Power : Pin = +15 dBm

5. Total Power Dissipation :  Ptot = 1.5 W



Other data sheets are available within the file: UPG103A, UPG103A(1), UPG103P

UPG103B Datasheet PDF Download
