V414A Datasheet PDF – 5V, Photo ED MOS Relay – Cosmo

Part Number: V414A

Function: Photo ED MOS Relay

Package: DIP, SOP 6 Pin

Manufacturer: COSMO Electronics

Image and Pinouts:

V414A datasheet

Description:

The V414A is 5V, High Voltage, Photo ED MOS Relay.

A relay is an electrically operated switch that opens or closes a circuit by activating an electromagnet to actuate the switch. It allows a low-power electrical signal, such as from a microcontroller or sensor, to control a much larger current or voltage, such as required to drive a motor or light bulb. This allows a small electronic device to control a much larger one, or to isolate the low-power circuit from the high-power one. Relays are used in a wide range of applications, including automotive systems, HVAC systems, and computer power supplies, among other

Features:

1. Normally Close, Single Pole Single Throw

2. Control 400VAC or DC Voltage

3. Switch 130 mA Loads

4. LED control Current, 5mA

5. Low ON-Resistance

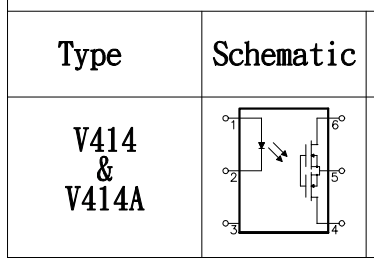

Pinout:

Absolute maximum ratings ( Ta=25° )

1. Emitter ( Input )

(1) Reverse Voltage : 5.0 V
(2) Continuous Forward Current : 50 mA
(3) Peak Forward Current : 1 A
(4) Power Dissipation : 100 mW

2. Detector( Ouput )

(1) Output Breakdown Voltage : ± 400 V
(2) Continuous Load Current :  ± 130 mA
(3) Power Dissipation : 500 mW

Other data sheets are available within the file: V414
