VFC32KP Datasheet PDF – Voltage-to-frequency Converter

Part Number : VFC32KP

Function : Voltage-to-Frequency and Frequency-to-Voltage Converter

Package : DIP 14 Pin Type

Manufacturers : Burr-Brown (Texas Instruments)

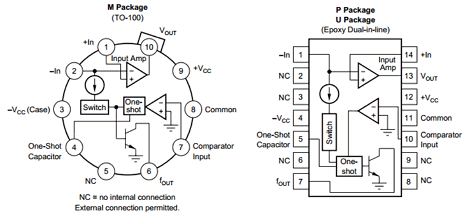

Image and Pinouts :

VFC32KP datasheet



Description :

The VFC32KP voltage-to-frequency converter provides an output frequency accurately proportional to its input voltage. The digital open-collector frequency output is compatible with all common logic families. Its integrating input characteristics give the VFC32 excellent noise immunity and low nonlinearity.

Features :

1. OPERATION UP TO 500kHz

2. EXCELLENT LINEARITY
(1) ±0.01% max at 10kHz FS
(2) ±0.05% max at 100kHz FS

3. V/F OR F/V CONVERSION

4. MONOTONIC

5. VOLTAGE OR CURRENT INPUT

Applications :

1. INTEGRATING A/D CONVERTER

2. SERIAL FREQUENCY OUTPUT

3. ISOLATED DATA TRANSMISSION

4. FM ANALOG SIGNAL MOD/DEMOD

5. MOTOR SPEED CONTROL

6. TACHOMETER



VFC32KP Datasheet PDF Download


VFC32KP pdf

Other data sheets within the file :

VFC32BM, VFC32, VFC32KU, VFC32KU/2K5, VFC32SM
