WFD830 Datasheet – 500V, 4.5A, N-Ch, MOSFET ( PDF )

Part Number: WFD830

Function: Silicon N-Channel MOSFET

Package: DPAK Type

Manufacturer: Winsemi

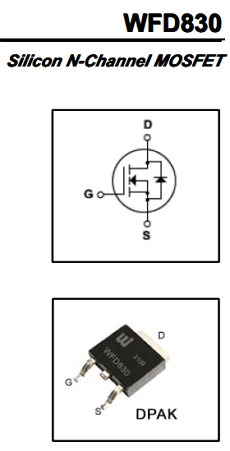

Image and Pinouts:

WFD830 datasheet



Description:

This is 4.5A, 500V, N-Channel MOSFET.

This Power MOSFET is produced using Winsemi ’ s advanced planar stripe, DMOS technology. This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics. This devices is specially well suited for high efficiency switch model power supplies, power factor correction and half bridge and full bridge resonant topology line a electronic lamp ballast.

Features

1. 4.5A, 500V, RDS(on)(Max 1.5Ω)@VGS=10V

2. Ultra-low Gate Charge(Typical 32nC)

3. Fast Switching Capability

4. 100%Avalanche Tested

5. Maximum Junction Temperature Range(150℃)

Other data sheets are available within the file: WFD-830
