X0640C Datasheet – TV Vertical Deflection Output – Sharp

Part Number : X0640C, IX0640CE

Package : ZIP 7 Pin

Function : Color TV Vertical Deflection Output Circuit

Manufacturers : Sharp

Image :

X0640C

X0640C Datasheet

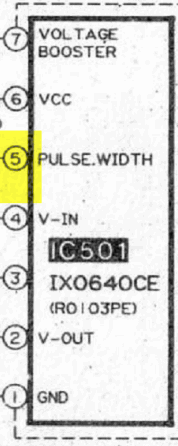

X0640C Pinouts

X0640C Circuit



X0640C = LA7830 ( Sanyo )

The LA7830 is a monolithic linear IC designed for small-aperture color TV vertical deflection output and has such features as greatly reduced number of external parts and low power dissipation. The LA7830 can be used in conjunction  with  the  LA7620 series for video  chromadeflection use and the  ~~7800 series for deflection use and the LA7850 series for display use to form a stable and compact vertical output deflection circuit.

Datasheet Download : [ LA7830.PDF ]
