XC95144XL-10TQ100C Datasheet – High Performance CPLD – Xilinx

Part Number : XC95144XL-10TQ100C

Function : XC95144XL High Performance CPLD

Package : TQ100, 100-pin, Thin Quad Flat Pack (TQFP)

Manufactures : Xilinx ( www.xilinx.com )

xc95144xl-10tq100c-cpld-xilinx

Description

The XC95144XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of eight 54V18 Function Blocks, providing 3,200 usable gates with propagation delays of 5 ns.



Pinout

xc95144xl-10tq100c-datasheet-pinout



Features

1. 5 ns pin-to-pin logic delays

2. System frequency up to 178 MHz

3. 144 macrocells with 3,200 usable gates

4. Fast concurrent programming

5. Slew rate control on individual outputs

6. Enhanced data security features

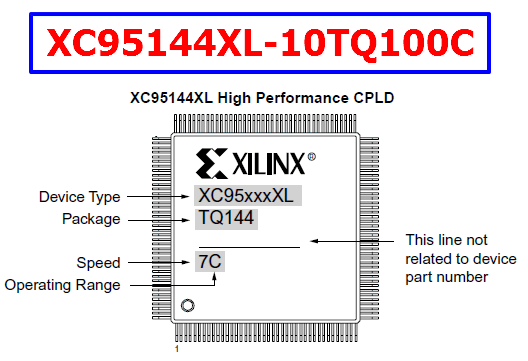

Ordering Information

xc95144xl-10tq100c-ordering-information





XC95144XL-10TQ100C Datasheet
