XP0111M Datasheet PDF – 50V, 100mA, PNP Transistor

Part Number : XP0111M, Marking : EK

Function : -50V, -100mA, PNP Transistor

Package : S-Mini Type 5 Pin

Manufacturers : Panasonic Corporation

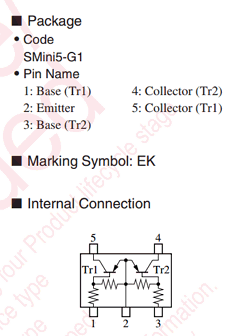

Pinouts :

XP0111M datasheet



Description :

This is Silicon PNP epitaxial planer transistor.

Features :

1. Two elements incorporated into one package
(Emiiter-coupled transistor with built-in resistor)

2. Reduction of the mounting area and assmbly cost by one half



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = – 50 V

2. Collector to Emitter Voltage : Vceo = – 50 V

4. Collector Current : Ic = – 100 mA

5. Total Power Dissipation : Pc = 150 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C



Other data sheets within the file : XP0111-M
