YTF830 Datasheet PDF – 500V, N-Ch, MOSFET – Toshiba

Part Number : YTF830

Function : 500V, Silicon N Channel MOS TYPE MOSFET

Package : TO-220AB Type

Manufacturers : Toshiba

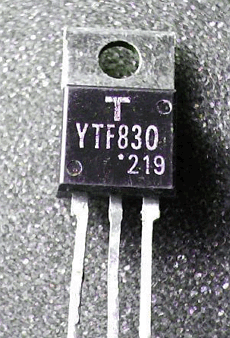

Image and Pinouts :

YTF830 datasheet



Description :

This is 500V, N-Channel MOSFET.

Features :

1. Drain-Source Voltage : Vdsx = 500V

2. Drain-Gate Voltage : Vdgr = 500 V

3. Low Drain-Source ON Resistance : Rds(on) = 1.3 Ohm(Typ.)

4. High Forward Transfer Admittance : |Yfs| = 3.25S(Typ.)

Applications :

1. High speed, High current switching

Other data sheets within the file : YTF-830
