1N4148 PDF Datasheet – 100V, Switching Diode

This is Switching Diode.

Part Number: 1N4148, IN4148

Function: Small Signal Diode

Package: DO-204AH (DO-35)

Manufacturer: Fairchild Semiconductor

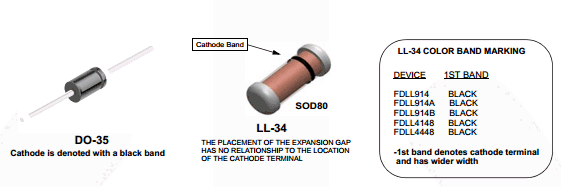

1N4148 datasheet

Absolute Maximum Ratings

1. Maximum Repetitive Reverse Voltage : Vrrm = 100 V
2. Average Rectified Forward Current : Io = 200 mA
3. DC Forward Current : IF = 300 mA
4. Recurrent Peak Forward Current : lf = 400mA
5. Power Dissipation: Pd = 500 mW
6. Storage Temperature Range : Tstg = -65 to +200°C
7. Operating Junction Temperature Range : Tj = -55 ~ +175°C

Other data sheets are available within the file:  1N4448
