60R360P PDF – MMP60R360P – 600V, N-Channel MOSFET

Part Number: 60R360P, MMP60R360P

Function: 600V, 11A, N-Channel MOSFET

Package: TO-220 Type

Manufacturer: MagnaChip

Images:60R360P pinout datasheet

Description

This is 60R360P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.

An N-channel MOSFET (Metal Oxide Semiconductor Field Effect Transistor) is a type of field effect transistor (FET) that uses an N-type semiconductor material as the conducting channel to control the flow of current.

When a positive voltage is applied to the gate terminal, it attracts electrons to the channel, creating an inversion layer and allowing current to flow between the source and drain terminals.

N-channel MOSFETs are widely used in a variety of electronic applications due to their high input impedance, fast switching speeds, and low power consumption. They are commonly used as switches, amplifiers, and voltage regulators.

Features:

1. Low Power Loss by High Speed Switching and Low On-Resistance

2. 100% Avalanche Tested

3. Green Package – Pb Free Plating, Halogen Free

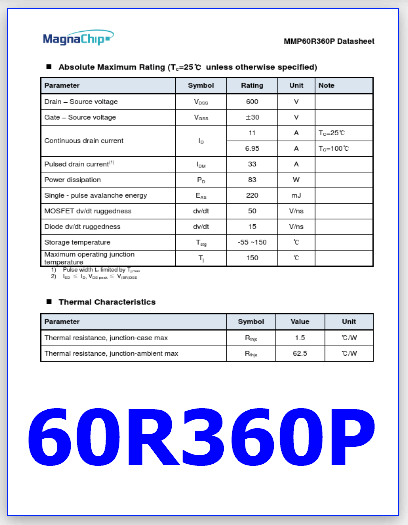

60R360P pdf mosfet

Applications:

1. PFC Power Supply Stages

2. Switching Applications

3. Adapter

4. Motor Control

5. DC – DC Converters

60R360P PDF Datasheet
