70R900P Datasheet PDF – 700V, 5A, N-Channel, MOSFET

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: 70R900P, MMIS70R900P

Function: 700V, 0.9 Ohm, N-Channel MOSFET

Package: TO-251-VS, IPAK-VS Type

Manufacturer: MagnaChip Semiconductor

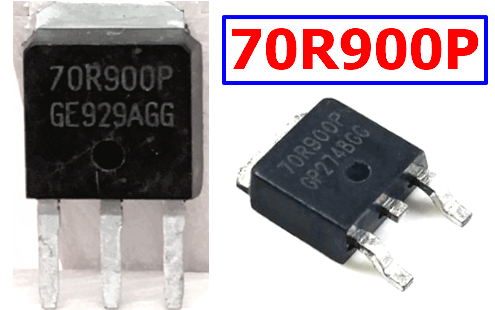

70R900P datasheet mosfet transistor


The 70R900P is power MOSFET using magnachip’s advanced super junction technology that
can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.

70R900P Pinout

70R900P pinout


1. Low Power Loss by High Speed Switching and Low On-Resistance

2. 100% Avalanche Tested

3. Green Package – Pb Free Plating, Halogen Free


Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 700 V

2. Gate to source voltage: VGSS = ± 30 V

3. Drain current: ID = 5 A (Tc = 25°C)

4. Power Dissipation: Pd = 40 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C



1. PFC Power Supply Stages

2. Switching Applications

3. Adapter

4. Motor Control

5. DC – DC Converters

Other data sheets are available within the file: MMIS70R900P

70R900P Datasheet PDF

70R900P pdf
