7M0880 PDF Datasheet – Fairchild Power Switch – FS7M0880

This post explains for the semiconductor FS7M0880.

The Part Number is 7M0880.

The function of this semiconductor is Power Switch.

The package is TO-3P-5L Type

Manufacturer: Fairchild Semiconductor

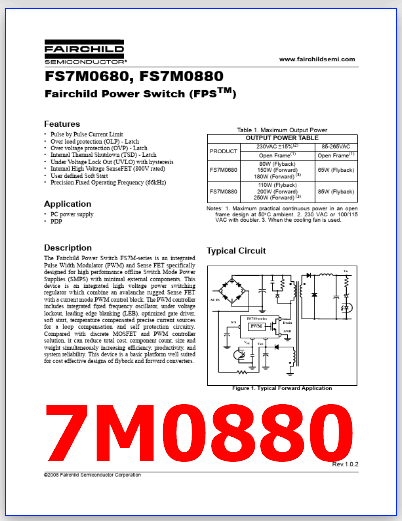

Preview images :7M0880 datasheet fairchild


Fairchild Power Switches were commonly used in switch-mode power supplies (SMPS) to regulate and control the power flow efficiently. They integrated various features such as overvoltage protection, overcurrent protection, thermal shutdown, and other control mechanisms to ensure the safe and reliable operation of power supply systems.

7M0880 is Fairchild Power Switch. The Fairchild Power Switch FS7M-series is an integrated Pulse Width Modulator (PWM) and Sense FET specifically designed for high performance offline Switch Mode Power
Supplies (SMPS) with minimal external components. This device is an integrated high voltage power switching regulator which combine an avalanche rugged Sense FET with a current mode PWM control block. The PWM controller includes integrated fixed frequency oscillator, under voltage lockout, leading edge blanking (LEB), optimized gate driver, soft start, temperature compensated precise current sources
for a loop compensation and self protection circuitry.


• Pulse by Pulse Current Limit

• Over load protection (OLP) – Latch

• Over voltage protection (OVP) – Latch

• Internal Thermal Shutdown (TSD) – Latch

• Under Voltage Lock Out (UVLO) with hysteresis

• Internal High Voltage SenseFET (800V rated)

• User defined Soft Start

• Precision Fixed Operating Frequency (66kHz)

7M0880 pdf pinout



• PC power supply
