7MBR35SB-120 Datasheet PDF – 1200V, 35A, IGBT Module

Part Number: 7MBR35SB-120

Function: IGBT PIM 1200V 6x35A+Chopper

Package: Module Type

Manufacturer: Fuji Electric

Image:

7MBR35SB-120 datasheet



Description

This is 1200V, 35A, IGBT, Power Integrated Module (PIM).



Features

• NPT-Technology

• Solderable Package

• Square SC SOA at 10 x IC

• High Short Circuit Withstand-Capability

• Small Temperature Dependence of the Turn-Off Switching Loss

• Low Losses And Soft Switching

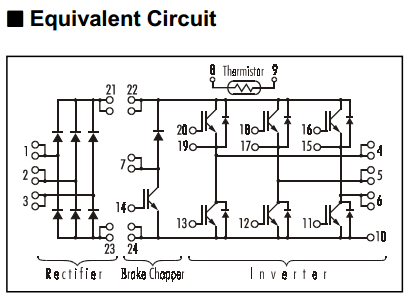

Pinout and Circuits :

components



Absolute Maximum Ratings (Ta = 25°C)

1. Collector to emitter voltage: Vces = 1200 V

2. Gate to emitter voltage: Vges = ± 20 V

3. Collector current : Ic = 35 A

4. Collector Power Dissipation : Pc = 180 W

5. Junction temperature : Tj = 150 °C

6. Storage temperature: Tstg = -45 to +150 °C



Other data sheets are available within the file: 7MBR35SB120
