LTM200KT10 PDF Datasheet – 20 Inch, TFT LCD Module

Part Number: LTM200KT10

Function: 20 inch, TFT LCD Module

Active Display Area : 442.8(H) x 249.075(V) mm

Number of Pixels : 1,600 x 900 pixel

Manufacturer: Samsung

Images:

LTM200KT10 TFT LCD Panel

Description

The LTM200KT10 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components This model is composed of a silicon TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 20” is 1600 x 900 and this model can display up to 16.7 millions colors. […]

Features

1. High contrast ratio, high aperture structure

2. High speed response High speed response

3. 20”W HD+ (1,600 x 900 pixels) resolution

4. White LED Edge slim Backlight ( 1-side )

5. DE (Data Enable) only mode

6. LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)

7. Compact Size Design

8. RoHS compliance

9. CO 5.1 compliances
( Except for 2.2 response time; this product does not have over driving function.
It is recommended to support in system level )

10. Halogen Free

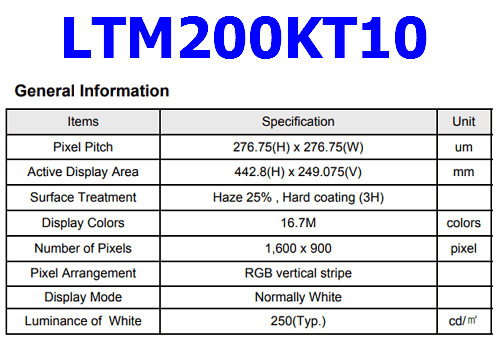

LTM200KT10 datasheet pinout

Applications

1. Multi-functional monitor products
2. Display terminals for AV application products
3. Monitors for industrial machine
– If the module is used to other applications besides the above, please contact SEC in advance.



LTM200KT10 Datasheet
