This post explains for the CMOS microcomputer.
The Part Number is M30620MCP-XXXGP.
The function of this semiconductor is SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER.
Manufacturer: Renesas Technology

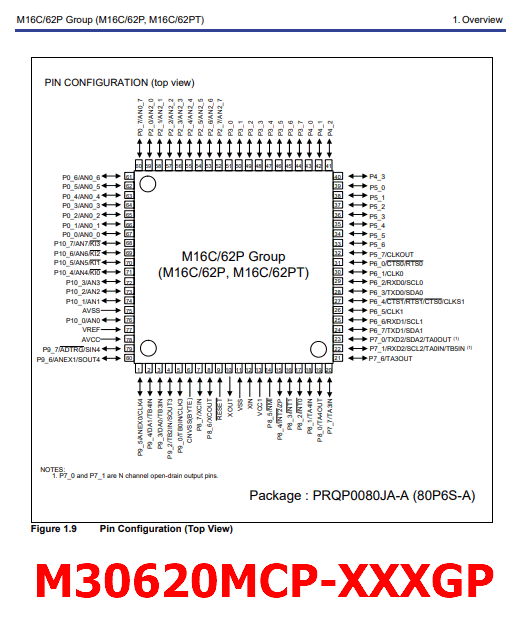

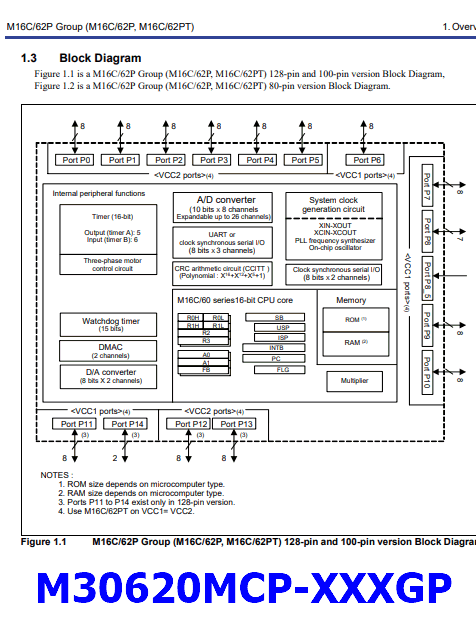

Preview images :
Description
The M30620MCP-XXXGP is 16-BIT CMOS MICROCOMPUTER. A 16-bit CMOS microcomputer refers to a microcomputer architecture that uses 16-bit data processing and employs complementary metal-oxide-semiconductor (CMOS) technology for its integrated circuits. It combines a central processing unit (CPU), memory, input/output (I/O) interfaces, and other peripherals on a single chip.
Overview:
The M16C/62P Group (M16C/62P, M16C/62PT) of single-chip microcomputers are built using the high performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 80-pin, 100-pin and 128-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. In addition, this microcomputer contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires highspeed arithmetic/logic operations. 1.1 Applications Audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc. Specifications written in thi […]
Applications:
Audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc
M30620MCP-XXXGP Datasheet
