Pm25LD010 PDF Datasheet – 1 Mbit, Serial Flash Memory

This post explains for the Flash Memory.

The Part Number is Pm25LD010.

The function of this Flash Memory is 1 Mbit Serial Flash Memory.

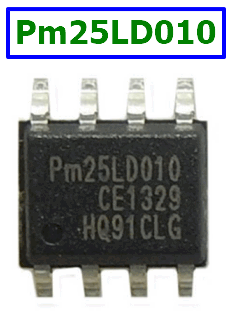

The package is SOIC 8 Pin Type

Manufacturer: Chingis Technology


Pm25LD010 PDF Datasheet


The Pm25LD010 is 1Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output. The devices are designed to support a 33 MHz clock rate in normal read mode, and 100 MHz in fast read, the fastest in the industry. The devices use a single low voltage power supply, wide operating voltage ranging from 2.3 Volt to 3.6 Volt, to perform read, erase and program operations. The devices can be programmed in standard EPROM programmers.

Serial Flash Memory is a type of non-volatile memory that stores data using a serial interface instead of a parallel interface. It is also commonly referred to as Serial NOR Flash. Unlike parallel flash memory, which transfers data in parallel over multiple data lines, serial flash transfers data serially, bit by bit, over a single data line.

Serial flash memory is commonly used in a wide range of applications, including consumer electronics, automotive systems, and industrial and medical devices, due to its compact size, low power consumption, and fast read and write speeds. Some popular serial flash memory products include the Serial Peripheral Interface (SPI) NOR Flash and the Three-wire Serial NOR Flash.

2 page
Pm25LD010 Flash Memory


1. Single Power Supply Operation – Low voltage range : 2.3 V – 3.6 V

2. Serial Peripheral Interface (SPI) Compatible

(1) Supports single- or dual-output

(2) Supports SPI Modes 0 and 3

(3) Maximum 33 MHz clock rate for normal read

(4) Maximum 100 MHz clock rate for fast read

3. Low Power Consumption

(1) Typical 10 mA active read current

(2) Typical 15 mA program/erase current

Other data sheets are available within the file: Pm25LD512, Pm25LD020, Pm25LD040

Pm25LD010 PDF Datasheet
