ACM4004D Datasheet PDF – 40 Char x 4 Lines, LCD Module

Part Number: ACM4004D

Function: 40 Characters x 4 Lines, LCD Module

Manufacturer: AZ Displays

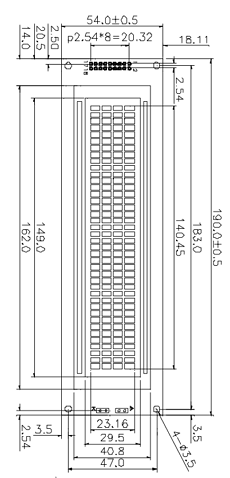

Image and Pinouts:

ACM4004D datasheet

This is 40 characters x 4 lines, 5 x 7 dots with cursor.



ACM4004D SERIES LCD MODULE

1. Number of Characters : 40 characters x 4 lines

2. Character Format : 5 x 7 dots with cursor

3. Overall Module Size (W x H x D)  :
(1) 190.0 x 54.0 x max 13.0 for LED backlight version
(2) 190.0 x 54.0 x max 8.8 for reflective or EL backlight version

4. Dot Size (W x H) :  0.50 x 0.55

5. Dot Pitch (W x H) :  0.57 x 0.62

6. Duty : 1/16

7. Controller IC : KS0066

8. LC Fluid Options : TN, STN

9. Polarizer Options : Reflective, Transflective, Transmissive

10. Backlight Options : EL, LED

11. Temperature Range Options : Standard, Wide temp

Other data sheets are available within the file:

ACM4004DFEBD-T, ACM4004DFEBH-T, ACM4004DFEBS-T, ACM4004DFEBW-T
