C5242 Datasheet – 15A 230V NPN Power Amplifier – Toshiba

Posted on by pinout

Part Number: C5242, 2SC5242

Description

15A 230V NPN Power Amplifier

Manufacturer: Toshiba


C5242 Image

Power Amplifier Applications

•  High Collector breakdown voltage: VCEO= 230 V (min)
•  Complementary to 2SA1962
•  Suitable fro use in 80-W high fidelity audio amplifier’s output stage

C5242 Datasheet Pinout

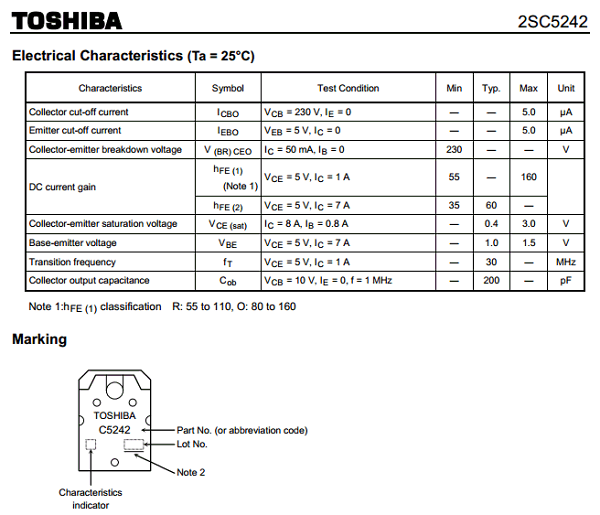

C5242 Datasheet

C5242 Datasheet
