DS26LS32MQML Datasheet PDF – Differential Line Receiver

Part Number: DS26LS32MQML

Function: Quad Differential Line Receiver

Package: DIP 16 Pin, 20-Lead LCCC Type

Manufacturer: Texas Instruments

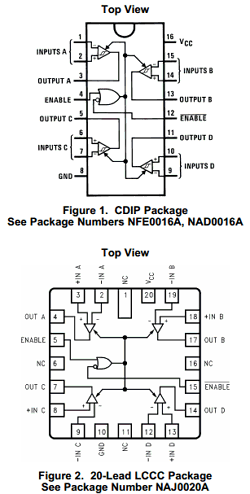

Image and Pinouts:

DS26LS32MQML datasheet


The DS26LS32 and DS26LS32MQML are quad differential line receivers designed to meet the RS-422, RS-423 and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission.

The DS26LS32 and DS26LS32A have an input sensitivity of 200 mV over the input voltage range of ±7V. The DS26LS33 has an input sensitivity of 500 mV over the input voltage range of ±15V.



1. High Differential or Common-Mode Input Voltage Ranges of ±7V on the DS26LS32.

2. ±0.2V Sensitivity Over the Input Voltage Range on the DS26LS32.

3. DS26LS32 Meet All Requirements of RS-422 and RS-423

4. 6k Minimum Input Impedance

5. 100 mV Input Hysteresis on the DS26LS32

6. Operation From a single 5V Supply

7. TRI-STATE Outputs, with Choice of Complementary Output Enables for Receiving Directly onto a Data Bus

Other data sheets are available within the file:

5962-7802006QEA, DS26LS32, DS26LS32M, DS26C32AMJ
