M5229P Datasheet – 7-Element Graphic Equalizer IC – Mitsubishi

Posted on by pinout

Part Number: M5229P, M5229FP

Function : Hi-Hi 7-Element Graphic Equalizer IC

Package:  20Pin ( DIP, SOP ) Type

Manufacturer: Mitsubishi Electric


m5229p-7-element-graphic-equalizer-ic

Description

The M5229P is a 7-element graphic equalizer IC best suited to Hi-Fi audio systems. It has 7-element resonance circuits with OP amp system and an output OP amp. The IC can be used in compact sets of high-density assemblies, modules, and hybrid ICs. Its applications cover Hi-Fi stereo sets, radio cassette tape players, car audio systems, music centers, and electronic instruments.

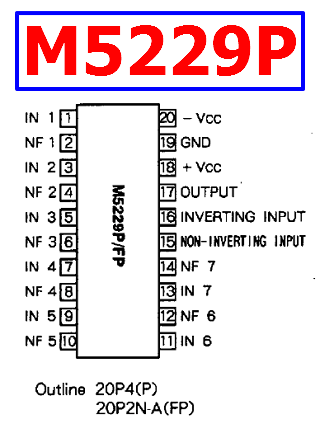

Pinout

m5229p-datasheet-pinout



Absoulte Maximum Ratings ( Ta = 25’C )

1. Supply voltage : Vcc = 36 ( +- 18) V

2. Load current : ILP = 50 mA

3. Power dissipation : Pd = 1000 mW

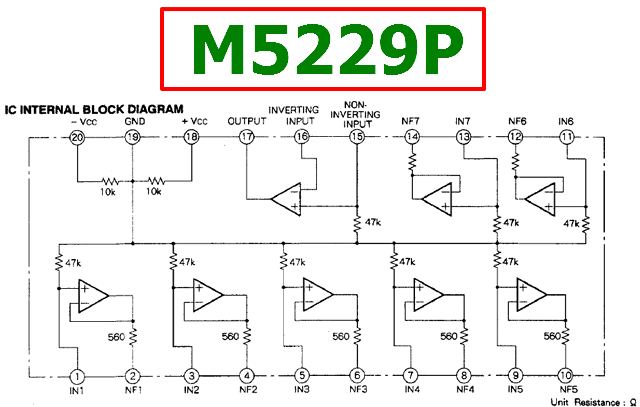

Block Diagram

m5229p-block-diagram

M5229P Datasheet




Related articles across the web

LA3600 Datasheet PDF – 5-Band Graphic Equalizer – Sanyo

Posted on by pinout

Part Number: LA3600

Function: 5-Band Graphic Equalizer, Monolithic Linear IC

Package : DIP16 Type

Manufacturer: SANYO (Panasonic)

Images :

LA3600 datasheet

Description

1. On-chip one operational amplifier.
2. 5-band graphic equalizer for one channel can be formed easily by externally connecting capacitors and variable resistors which fix fo(resonance frequency).
3. Series connection of two LA3600’s makes multiband (6 to 10 bands) available.
4. Highly stable to capacitive load.

Absolute Maximum Ratings at Ta = 25°C

1. Maximum Supply Voltage : VCC = max 20 V
2. Allowable Power Dissipation: Pd = max 300 mW

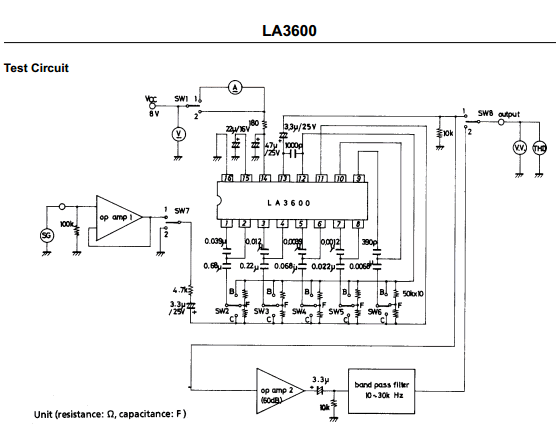

Test Circuit
