TC9156AP Datasheet – Optimum C2MOS IC, DIP 16

Part Number: TC9156

Function: Optimum C2MOS IC

Package: DIP 16 Pin Type

Manufacturer: Toshiba

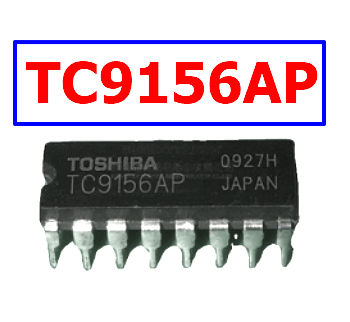

TC9156AP datasheet pdf

Description

TC9156AP is an optimal C2MOS IC designed for tone control electronics in audio equipment.

For tone control in audio equipment, specialized ICs such as equalizer ICs or tone control ICs are typically used. These ICs are specifically designed to adjust the frequency response of audio signals to achieve desired tone characteristics, such as bass, midrange, and treble control.

If you are looking for an IC designed for tone control in audio equipment, you might want to consider other ICs that are specifically designed for that purpose, such as the NJM4558 or the LM1036. These ICs provide features for bass, midrange, and treble control, along with volume adjustment and other audio processing functions.

Features

1. 2 Channels have been built in.

2. It is capable of optionally setting control position when specified data are externally supplied to the data, clock and storobe input termainals.

3. Being in C2-MOS structure, the operating voltage range is wide and current consumtion is low.

Pinouts

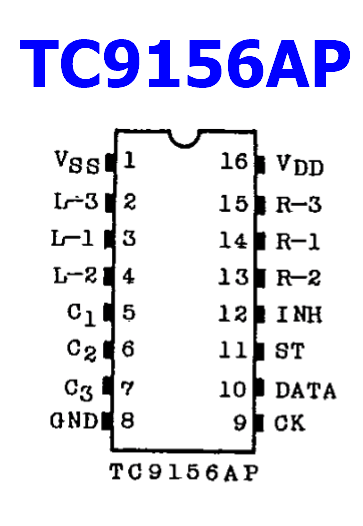

TC9156AP pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Supply Voltage : Vdd = 13 V

2. Input Voltage : Vin = ( Vss -03. ~ Vdd +0.3 V )

3. Power Dissipation : Pd = 150 mW



TC9156AP Datasheet PDF
