FEP16 PDF – 16A / Super Fast Rectifier

Part Number: FEP16

Function: 16 Ampere Glass Passivated Super Fast Rectifier

Manufacturer: Fairchild Semiconductor

Images:FEP16 pdf

Description

A super-fast rectifier, also known as an ultra-fast rectifier, is a type of rectifier diode that is designed to have extremely fast switching speeds and low recovery times. It is optimized for high-frequency applications where fast switching is crucial to minimize power losses and improve overall efficiency.

Super-fast rectifiers are commonly used in applications that require high-frequency rectification, such as switch-mode power supplies, motor drives, telecommunications equipment, and high-frequency inverters.

Features:

1. Low forward voltage drop.
2. High surge current capacity.
3. High current capability.
4. High reliability.

0.113(2.87) 0.103(2.62) 0.27(6.86) 0.23(5.84) 0.412(10.5) MAX 0.154(3.91) 0.148(3.74) 0.185(4.70) 0.175(4.44) 0.055(1.40) 0.045(1.14) 0.594(15.1) 0.587(14.9) TO-220AB 0.16(4.06) 1 0.14(3.56) 2 3 0.11(2.79) 0.10(2.54) Dimensions are in: inches (mm) PIN 1 + PIN 3 Positive CT CASE PIN 2 PIN 1 PIN 3 Negative CT Suffix “A” CASE PIN 2 PIN 3 Doubler Suffix “D” PIN 1 0.56(14.22) AC CASE PIN 2 0.037(0.94) 0.027(0.68) 0.53(13.46) 0.025(0.64) 0.105(2.67) 0.095(2.41) 0.014(0.35) 16 Ampere Glass Passivated Super Fast Rectifiers Absolute Maximum Ratings- Symbol IO if(surge) PD RθJA RθJL Tstg TJ TA = 25°C unless otherwise noted Parameter Average Rectified Current .375 ” lead length @ TA = 100°C Peak Forward Surge Current 8.3 ms single half-sine-wave Superimposed on rated load (JEDEC method) Total Device Dissipation Derate above 25°C Thermal Resistance, Junction to Ambient Thermal Resistance, Junction to Lead Storage Temperature Range Operating Junction Temperature Value 16 Units A 200 8.33 66 15 2.2 -65 to +150 -65 to +150 A W mW/°C °C/W °C/W °C °C *

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Electrical Characteristics Parameter TA = 25°C unless otherwise noted Device 16AT 16BT 100 70 100 16CT 150 105 150 16DT 200 140 200 10 500 35 0.95 85 1.3 50 1.5 60 16FT 300 210 300 16GT 400 280 400 16HT 500 350 500 16JT 600 420 600 50 35 50 Units V V V µA µA nS V pF Peak Repetitive Reverse Voltage Maximum RMS Voltage DC Blocking Voltage (Rated VR) Maximum Reverse Current @ rated VR T A = 25°C T A = 100°C Maximum Reverse Recovery Time IF = 0.5 A, IR = 1.0 A, IRR = 0.25 A Maximum Forward Voltage @ 8.0A Typical Junction Capacitance VR = 4.0. f = 1.0 MHz ©1999 Fairchild Semiconductor Corporation FEP16AT – FEP16JT, 0 […]

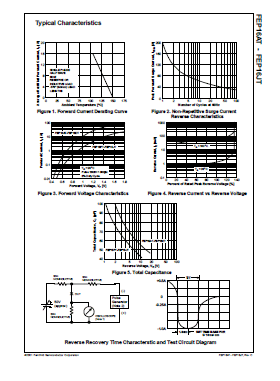

FEP16 datasheet
