BC547B Datasheet PDF – 45V, 100mA, NPN Transistor

Part Number: BC547B, Marking : C547B

Function : 45V, 100mA, NPN Transistor

Package: SOT54, TO-92 Type

Manufacturer: Philips Semiconductors, NXP


bc547b-npn-transistor

Description

The BC547B is 45V, 100mA, NPN general-purpose transistors in small plastic packages.

Features

1. Low current

2. Low voltage

3. Three different gain selections

Applications

1. General-purpose switching and amplification

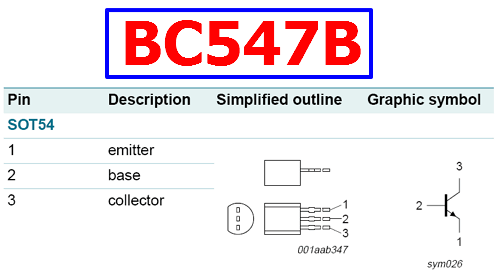

Pinout

bc547b-datasheet-pinout



Limiting Value Specifications:

1. Collector-base voltage open emitter : VCBO = – 50 V

2. Collector-emitter voltage open base : VCEO = – 45 V

3. Emitter-base voltage open collector : VEBO = – 6 V

4. Collector current : IC = – 100 mA



bc547b-spec



BC547B Datasheet PDF
