GH-1A-12L-2 Datasheet – 1 Pole, 12V Relay – Golden Tech

Part Number: GH-1A-12L-2

Function: 1 Pole, 12V Relay

Package: DIP 5 Pin PCB Type

Manufacturer: Golden Technology Group (H.K) Limited

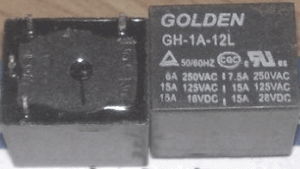

GH-1A-12L-2 image

Features

1. Superminiature, High power.
2. Low coil power consumption.
3. PC board mounting.
3. Suitable for household appliance, automation system, electronic equipment, instrument and meter, communication facilities and remote control facilities.

Contact Data

1. Contact Arrangement   1A, 1B, 1C
2. Contact Material  Nil: Ag‚CdO S: Ag‚SnO2
3. Contact Rating (resistive)  10A/250VAC, 10A/277VAC, 12A/125VAC; TV-5/120VAC
4. Max. Switching Power  336W 2500VA
5. Max. Switching Voltage  110VDC 380VAC Max. Switching Current:12A
6. Contact Resistance or Voltage drop   50mΩMax. Item 3.12 of IEC255-7

Pinout

GH-1A-12L-2 datasheet pinout

Other data sheets are available within the file: GH-1A12L2, GH1A12L2

GH-1A-12L-2 Datasheet
