L7805CV Datasheet PDF – 5V, 1.5A, Voltage Regulator

This is one of the Voltage Regulator types.

Part Number: L7805CV

Function : 5V, 1.5A, Positive voltage regulator

Package: TO-220 Type

Manufacturer: STMicroelectronics

See the preview image and the PDF file for more information.

L7805CV Voltage Regulator

Description

The L7805CV series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

L7805CV Pinout

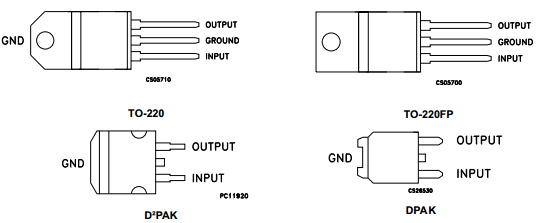

L7805CV datasheet pinout



Features

1. Output current up to 1.5 A

2. Output voltages of 5V

3. Thermal overload protection

4. Short circuit protection

5. Output transition SOA protection

6. 2 % output voltage tolerance (A version)

Other data sheets are available within the file: L7806CV, L7808CV, L7812CV, L7815CV, L7820CV, L7824CV

L7805CV Datasheet


L7805CV pdf
