MAX232N Datasheet – Dual EIA-232 Drivers/Receivers – TI

Part Number: MAX232N, MAX232I

Function : DUAL EIA-232 DRIVER/RECEIVER

Package: DIP, SMD type

Manufacturer: Texas Instruments


max232n-dual-driver-receiver

Description

The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply
TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.

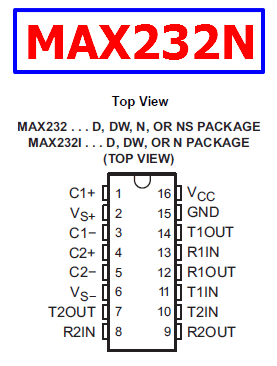

Pinout

max232n-datasheet-pinout



Features

1. Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28
2. Operates From a Single 5-V Power Supply With 1.0-μF Charge-Pump Capacitors
3. Operates up to 120 kbit/s
4. Two Drivers and Two Receivers
5. ±30-V Input Levels
6. Low Supply Current: 8 mA Typical



Applications

1. TIA/EIA-232-F
2. Battery-Powered Systems
3. Terminals
4. Modems
5. Computers





Official Homepage: https://www.ti.com/product/MAX232

Reference Site: https://en.wikipedia.org/wiki/MAX232



MAX232N Datasheet
