SPHE8281D Datasheet PDF – DVD Single Chip Processor

Partnumber : SPHE8281D

Function: DVD Single Chip MPEG A/V Processor

Package: LQFP 216 Pin ( 24 x 24 mm2 )

Manufacturers: Sunplus Confidential


SPHE8281D datasheet dvd processor



The SPHE8281D A/V decoder is a single-chip integrated DVD A/V decoder. It is designed to maximize system performance with minimum cost. It integrates DVD/CD controller, host processor, A/V decoding hardware, audio quality DAC and a 6-channel multi-format TV-encoder. SPHE8281D supports DVD and CD physical formats. For logical formats it supports DVD-Video, Super Video CD, Video CD, CD-DA, OKO, and CD-ROM discs.

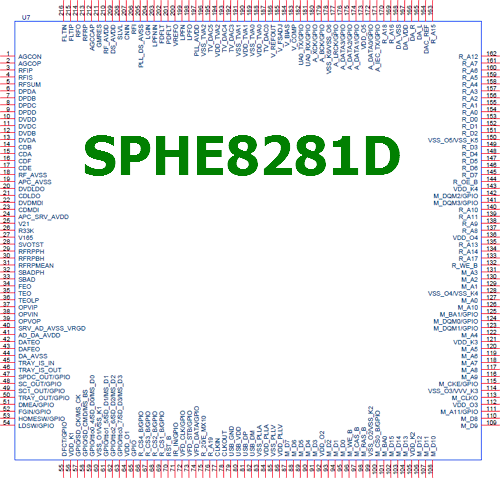

SPHE8281D pinout


1. Single Chip Integrated DVD Servo and A/V Decoder

2. Integrated DVD/CD Servo Controller
(1) Support 1x ~ 2x DVD format reading
(2) Support 1x ~ 8x CD format reading

3. Embedded 32-bit RISC Processor without external host controller

4. Embedded Audio Processor supports multiple audio standards

5. Embedded 8-bit I/O processor supports programmable interface control

6. Embedded TV encoder with multi-channel built-in high-speed video DAC supports various display standards

7. Embedded 2-channel 24-bit audio DAC

8. Built-in system PLL and audio PLL generate all clock sources required from single 27MHz crystal input
