BQ51050B Datasheet – Power Receiver and Battery Charger

Posted on by pinout

Part Number: BQ51050B

Function: High-Efficiency Qi v1.1-Compliant Wireless Power Receiver and Battery Charger

Package: VQFN (20), DSBGA (28) Type

Manufacturer: Texas Instruments

Pinouts:

BQ51050B datasheet



Description

The bq5105x, BQ51050B is a high efficiency, wireless power receiver with Li-Ion/Li-Pol battery charge controller for portable applications. The bq5105x device provides efficient AC/DC power conversion, integrates digital controller required to comply with Qi v1.1 communication protocol and all necessary control algorithms needed for efficient and safe Li-Ion and Li-Pol battery charger. Together with bq500210 transmitter-side controller, the bq5105x enables a complete wireless power transfer system for direct battery charger solution. By utilizing near-field inductive power transfer, the receiver coil embedded in the portable device can pick up the power transmitted by transmitter coil. The AC signal from the receiver coil is then rectified and conditioned to apply power directly to the battery. Global feedback is established from the receiver to the transmitter in order to stabilize the power transfer process. This feedback is established by utilizing the Qi v1.1 communication protocol.

Applications

• Battery Packs
• Cell Phones and Smart Phones
• Headsets
• Portable Media Players
• Other Handheld Devices

Other data sheets are available within the file:

BQ51050BRHLR, BQ51050BRHLT, BQ51050BYFPR, BQ51050BYFPT

BQ51050B Datasheet PDF Download


BQ51050B pdf

BQ24153A Datasheet – Switch-Mode One-Cell Li-Ion Charger

Posted on by pinout

Part Number: BQ24153A

Function: Fully Integrated Switch-Mode One-Cell Li-Ion Charger

Package: Small WCSP 20 Pin Type

Manufacturer: Texas Instruments

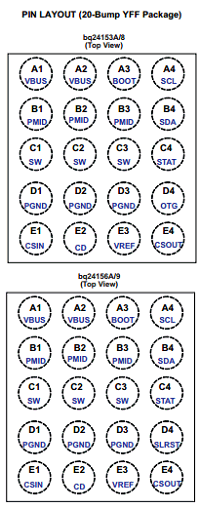

Pinouts:

BQ24153A datasheet



Description

The bq24153A / bq24156A / bq24158 / bq24159 is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The IC integrates a synchronous PWM controller,power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination,into a small WCSP package.

Features

• Charge Faster than Linear Chargers
• High-Accuracy Voltage and Current Regulation
– Input Current Regulation Accuracy: ±5% (100 mA and 500 mA)
– Charge Voltage Regulation Accuracy: ±0.5% (25°C), ±1% (0°C to 125°C)
– Charge Current Regulation Accuracy: ±5%
• Input Voltage Based Dynamic Power Management (VIN DPM)
• Bad Adaptor Detection and Rejection
• Safety Limit Register for Maximum Charge Voltage and Current Limiting
• High-Efficiency Mini-USB/AC Battery Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs
• 20-V Absolute Maximum Input Voltage Rating
• 9-V Maximum Operating Input Voltage-bq24156A/9
• 6-V Maximum Operating Input Voltage-bq24153A/8
• Built-In Input Current Sensing and Limiting
• Integrated Power FETs for Up To 1.5-A Charge Rate-bq24156A/9, 1.25A-bq24153A/8
• Programmable Charge Parameters through I2C™ Compatible Interface (up to 3.4 Mbps):
– Input Current Limit
– VIN DPM Threshold
– Fast-Charge/Termination Current
– Charge Regulation Voltage (3.5 V to 4.44 V)
– Low Charge Current Mode Enable/Disable
– Safety Timer with Reset Control
– Termination Enable/Disable

Applications

• Mobile and Smart Phones
• MP3 Players
• Handheld Devices

Other data sheets are available within the file:

BQ24153AYFFR, BQ24153AYFFT, bq24156A, BQ24156AYFFR



BQ24153A Datasheet PDF Download


BQ24153A pdf
