Part Number: VSX-D209-G

Function: Audio / Video MULTI-CHANNEL RECEIVER

Manufacturer: Pioneer Electronics

Image:

Description

This is Audio/Video Multi-Channel Receiver Amplifier.

Safely Information

This service manual is intended for qualified service technicians ; it is not meant for the casual do-ityourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.



Front Panel Section

Suggested VSX-D209-G Price: $260.00

Other data sheets are available within the file: VSX-D209

Official Homepage: https://www.pioneerhomeusa.com/

VSX-D209-G Manual and Datasheet



Related articles across the web

• Kitchen lighting
• NEW PRODUCT – Adafruit Parts Pal

Part Number: SYN470R

Function: ASK/OOK (ON-OFF Keyed) RF Receiver IC

Package: SOP 16 Pin Type

Manufacturer: Synoxo Inc

Image:

Description

The SYN470R is a single chip ASK/OOK (ON-OFF Keyed) RF receiver IC. This device is a true “antenna-in to data-out” monolithic device. All RF and IF tuning are accomplished automatically within the IC which eliminates manual tuning and reduces production costs. The result is a highly reliable yet low cost solution.

The SYN470R is a fully featured part in 16-pin packaging, the SYN480R is the same part packaged in 8-pin packaging with a reduced feature set.

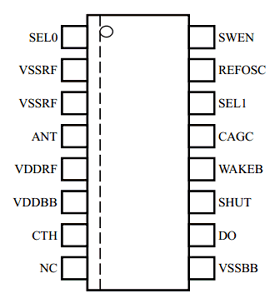

Pinout:

Features

1. 300MHz to 440MHz frequency range

2. High receiver sensitivity: -106dBm (315MHz), -107dBm (433MHz)

3. Data-rate up to 10kbps (fixed-mode)

4. Low Power Consumption

5. 2.5mA fully operational (315MHz)

6. 0.9µA in shutdown

7. 250µA in polled operation (10:1 duty-cycle)

8. Wake-up output flag to enable decoders and microprocessors

9. Very low RF re-radiation at the antenna

10. Highly integrated with extremely low external part count

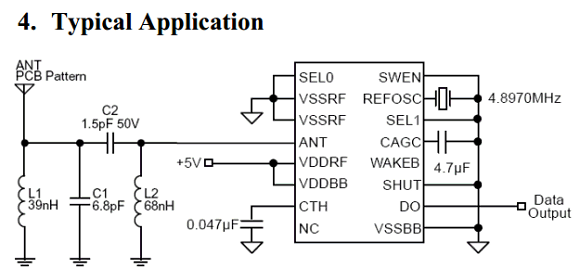

Test Circuits :

Applications:

1. Automotive Remote Keyless Entry (RKE)

2. Remote controls

3. Remote fan and light control

4. Garage door and gate openers

SYN470R Datasheet PDF
