TLV713185PDQNR Datasheet PDF – 150mA, LDO Regulator

Part Number: TLV713185PDQNR

Function: Capacitor-Free, 150-mA, Low-Dropout Regulator

Package: 4 Pin X2SON DQN Type

Manufacturer: Texas Instruments

TLV713185PDQNR datasheet

Description

The TLV713185PDQNR series of low-dropout (LDO) linear regulators are low quiescent current LDOs with excellent line and load transient performance and are designed for power-sensitive applications. These devices provide a typical accuracy of 1%.

The TLV713 series is designed to be stable without an output capacitor. The removal of the output capacitor allows for a very small solution size. However, the TLV713 series is also stable with any output capacitor if an output capacitor is used.

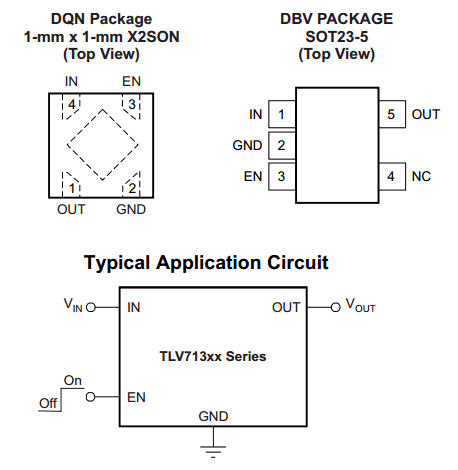

Pinouts:

components

Features

1. Stable Operation With or Without Capacitors

2. Foldback Overcurrent Protection

3. Very Low Dropout: 230 mV at 150 mA

4. Accuracy: 1%

5. Low IQ: 50 µA

6. Input Voltage Range: 1.4 V to 5.5 V

7. Available in Fixed-Output Voltages : 1 V to 3.3 V

8. High PSRR: 65 dB at 1 kHz

9. Active Output Discharge (P Version Only)

Applications:

1. PDAs and Battery-Powered Portable Devices

2. MP3 Players and Other Hand-Held Products

3. WLAN and Other PC Add-On Cards



TLV713185PDQNRDatasheet PDF Download


TLV713185PDQNR pdf

Other data sheets are available within the file:

TLV71310PDBVR, TLV71310PDBVT, TLV71310PDQNR, TLV71310PDQNT, TLV71311PDBVR
