MX612 Datasheet PDF – DC Motor Driver

Part Number : MX612

Function : DC motor drive circuit

Package : SOP 8 Pin

Manufacturers : Unspecified

Images :

Description :

The product is a battery-powered toys, low voltage or battery-powered motion control application provides an integrated brush DC motor drive solutions.

Circuit within the integrated circuit using N-channel H-bridge driver and P-channel power MOSFET design, suitable for driving brush DC motor or drive a stepper motor windings.

The circuit includes a wide operating voltage range (from 2V to 9.6V), the maximum continuous output current up to 1.2A, maximum peak output current of 2.5A.

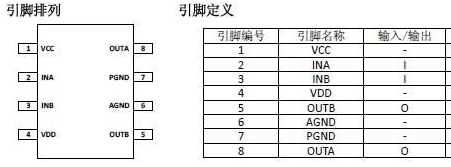

Pinout

Features

1. Low standby current (less than 0.1uA);
2. Low static working current;
3. Integrated H-bridge drive circuit;
4. Built-in anti-common mode conduction circuit;
5. Power MOSFET with low conduction internal resistance;
6. Built-in overheat protection circuit (TSD) with hysteresis effect;
7. Antistatic level: 3KV (HBM).

Typical application
1. 2-6 AA/AAA dry battery powered toy motor drive;
2. 2-6 section nickel-hydrogen/nickel-cadmium rechargeable batteries
